Ganos Fault Zone image (GFZimage)

To study the main branch of the NAFZ west of the Sea of Marmara along the Ganos fault, a 40-station local seismic network has been deployed in autumn 2017. The Ganos fault has produced a M7.4 earthquake in 1912 and is believed to be locked down to the base of the seismogenic crust. The main objectives of this network are to study fault-zone head and trapped waves as well as converted phases to image the fault at depth and to characterize the transition towards the offshore Marmara seismic section that is late in its seismic cycle based on local small-scale seismicity.

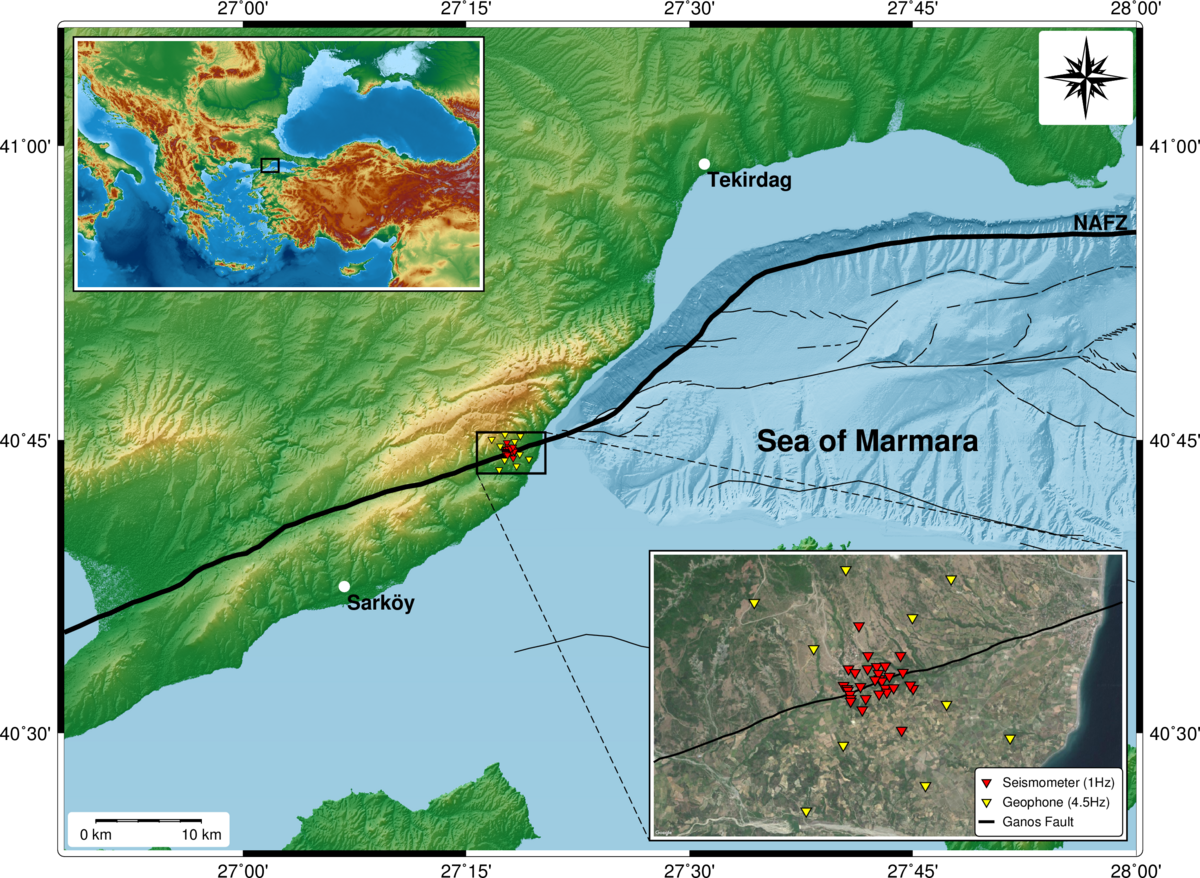

Location map of the GANOS stations (30 1-Hz seismometers and 10 15-Hz geophones) on the western shore of the Sea of Marmara

GANOS station coordinates

Station ID	Latitude (N)	Longitude (E)	Elevation (m)
FP0	40.74102	27.29888	205
FP2	40.74760	27.29553
FP3	40.74390	27.29701
FP4	40.74253	27.29842	218
FP5	40.74167	27.29872	211
FP7	40.74075	27.29928	204
FP8	40.73985	27.29985	184
FP9	40.73935	27.30008
FP11	40.73462	27.30250	188
FL4	40.74225	27.29382	117
FL5	40.73980	27.30438	182
F1_1	40.74005	27.29577	251
F1_2	40.74089	27.29814	202
F1_3	40.74133	27.30050	194
F1_4	40.74181	27.30271
F2_1	40.73855	27.29663	109
F2_2	40.73913	27.29882	243
F2_3	40.73990	27.30120	230
F2_4	40.74025	27.30390	183
F3_1	40.74179	27.29490	265
F3_2	40.74226	27.29694	306
F3_3	40.74261	27.29983	208
F3_4	40.74390	27.30232	238
FT1	40.74019	27.29303	225
FT2	40.73981	27.29358	220
FT3	40.73958	27.29372	222
FT4	40.73908	27.29406	220
FT5	40.73856	27.29417	216
FT6	40.73822	27.29417	215
FR5	40.73716	27.29607	84
FP1	40.75458	27.29339	472
FP12	40.72775	27.30639	168
FL1	40.75050	27.27844	573
FL3	40.74475	27.28814	276
FL6	40.73783	27.30983	166
FL8	40.73364	27.32022	100
FR1	40.75342	27.31058	206
FR3	40.74861	27.30425	248
FR6	40.73275	27.29297	216
FR8	40.72458	27.28692	116
